AERDU 48V 54.6V 20Ah 960Wh 21700 Lithium Battery Pack for Electroc Bicyle Ebike Scoote Heelchair Golf cart With 30A BMS 50E

$742.37
$742.37
Color:
Save 15% OFF with code: AERDU
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Specifications

Model: AED-130400

Cell type:  ( Samsung 21700 5000mAh )

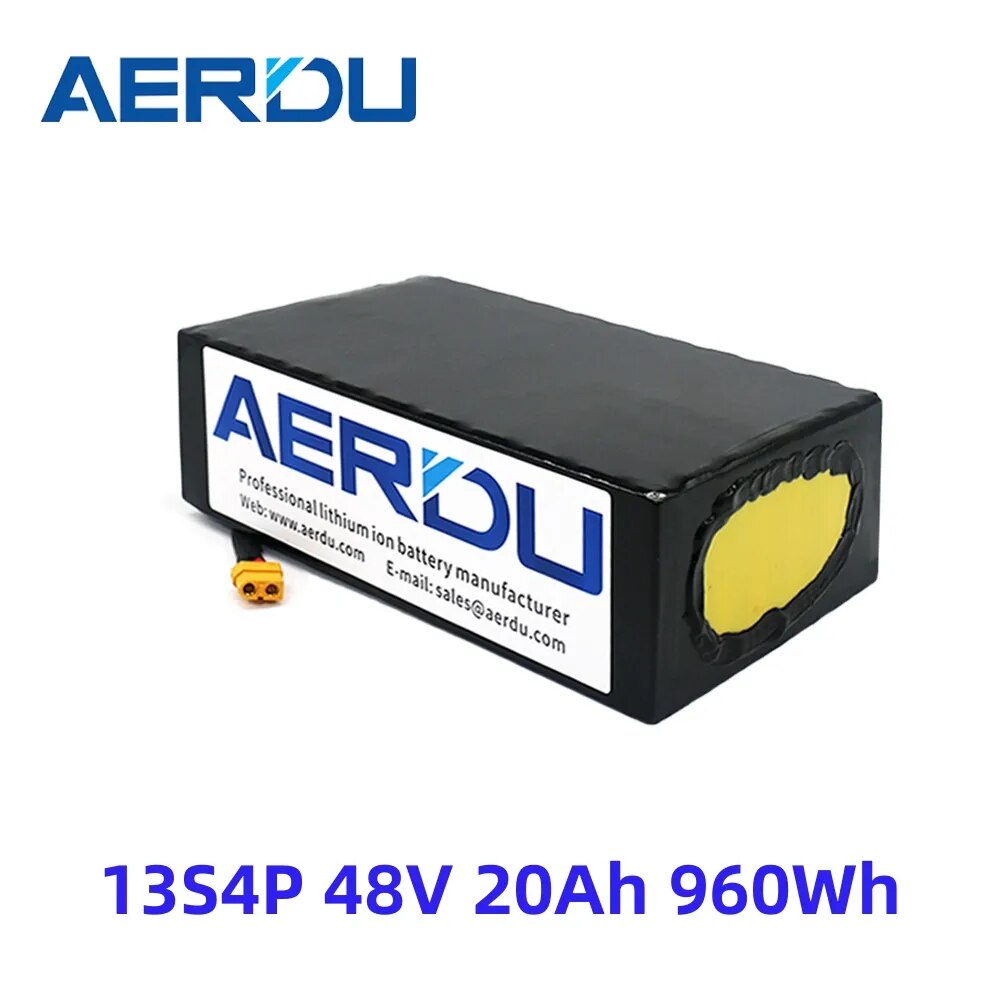

Cell count: 52 (13S4P)

Nominal voltage: 48V

Typical capacity: 20Ah/960Wh

Rated power: 1440Watt

Output voltage range: 32.5V-54.6V

Discharge cutoff voltage: 32.5V

Charging cutoff voltage: 54.6V

Charging method: constant current

Charging current limit: 2-5A

Charging temperature: -30~55 ° C

Exhaust temperature: -10~60 ° C

BMS working current: discharge 30A, charge 5A

Bare metal server type: Same port bare metal server

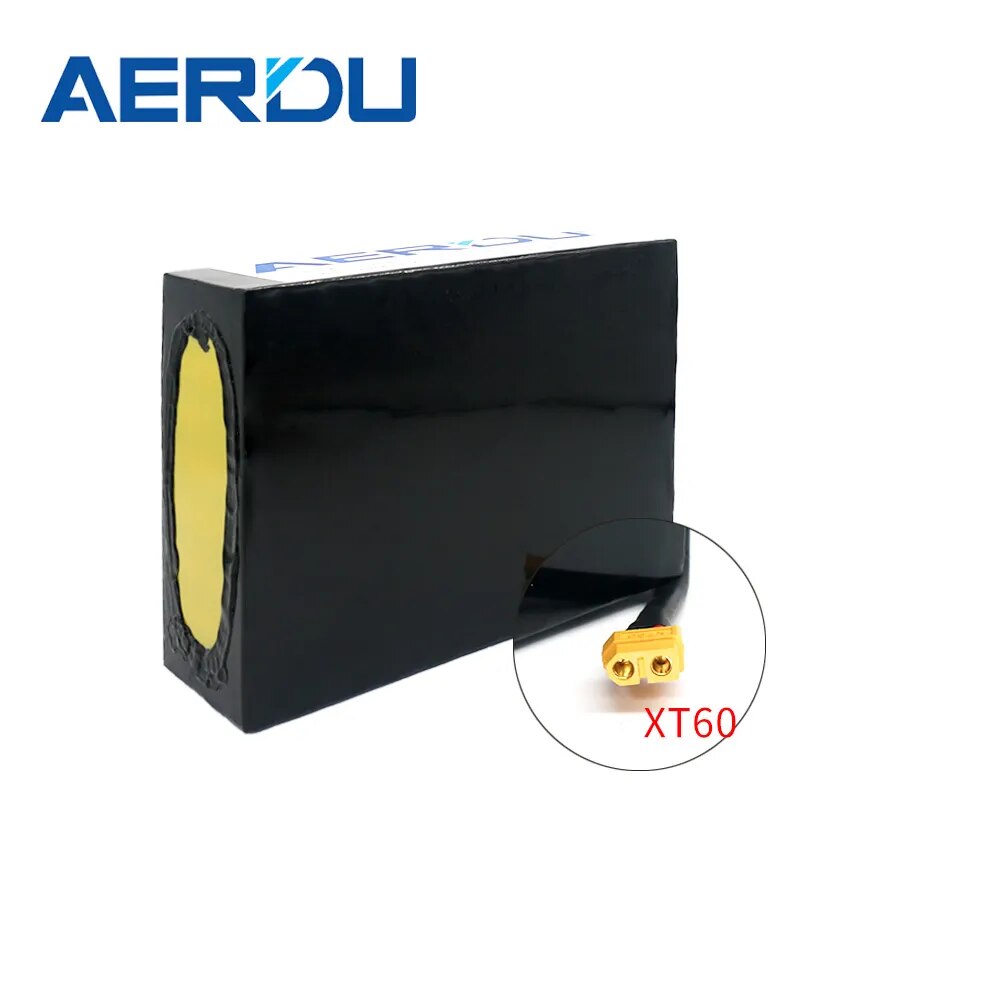

Connector: XT60 for discharge, XT60 for charging

Packaging: Heat shrink PVC, random color

Storage temperature: -20~60 ° C (3 months)

Cycle life: 80% DOD after 1000 cycles

21700 Size:310 * 92 * 75 (± 3mm)

21700 Weight: 3640g (± 50g)

We can customize the battery pack according to your requirements. If you need customization, please contact store customer service.

Guarantee

*Period: 1 year

*Coverage: Only the battery, other parts are not covered by the warranty.

*Warranty limitations: Water ingress, disassembly, modification, inability to use matching charger, short circuit, personal fault, etc., are not covered by the warranty.

*Processing method: Send the replacement parts to the buyer for replacement, or communicate with the seller for corresponding solutions.

*Some countries support a 15 day free local return service. If you are not satisfied with the product, please return it within 15 days.

About transportation

Shipping list:

1 battery pack

Transport reference time

Default Standard Shipping (Postal Parcel)

15-60 working days (different regions have different time limits)

This time is for reference only, and the actual transportation time shall prevail.

If you need faster transportation services or have any questions about transportation, please contact store customer service.

Attention!

*The default price does not include customs duties and taxes, unless otherwise specified. If you have any questions, please contact store customer service.

*The weight and size data are obtained through manual measurement, and there may be deviations. Please refer to the actual product.

*The packaging and appearance of the product will be updated and iterated, and are subject to change without prior notice. The pictures are for reference only, please refer to the actual product.

*The performance parameter data is sourced from AERDU laboratory, please refer to the actual results. The actual test results will be affected by testing conditions such as temperature, heat loss, line loss, testing equipment accuracy, testing parameters, etc. Please perform multiple tests and average the results to reduce bias.

*Usually, we accept a temperature of 25 degrees Celsius, and it is normal for the pure resistance discharge test results within the performance parameters to deviate by about 10% from the described data.

*Batteries are dangerous products. Before purchasing, please ensure that you understand the relevant knowledge of lithium batteries and can safely complete the installation of the battery pack or have professional assistance in installation. Improper operation may lead to safety accidents, such as fires, explosions, or equipment damage. Please take all necessary precautions and protective measures when using batteries.
